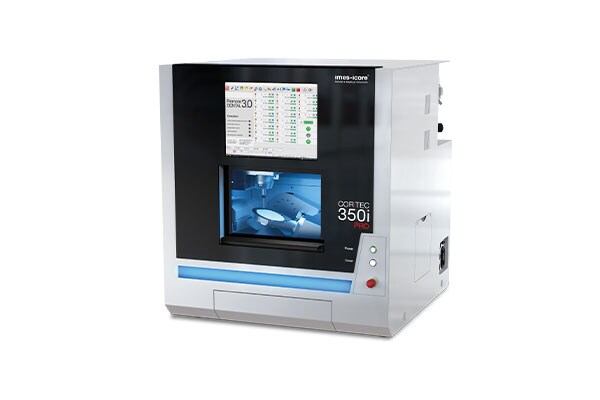

CORiTEC 350i Pro

Professional solution for highest demands

The CORiTEC 350i Pro comes with high resolution dynamic servo motors with absolute encoders that guarantee up to 20% faster milling with the most precision. Its heavy polymer concrete base, cast as a monoblock, ensures the highest possible stability and vibration-free milling. Due to the precise repositioning of the zero point clamping system, different PreFab abutment holders can be used.

Features:

• 5 axes processing (3+2 and simultaneous)
• High dynamic AC servomotors with absolute encoder
• Mono block base from polymer concrete
• Integrated zero-point-clamping-system
• Included second blank-holder
• Integrated dry and wet processing
• 15" touchscreen and PC integrated
• Integrated cooling liquid tank and circle
• Automatic tool changing system for 20 tools
• Suitable for processing of zirconium oxide, aluminum oxide, wax, PMMA, resins, glass-ceramics, CoCr and titanium
• Milling-angles up to 30 degrees with the standard blank holder
• Rotation-axis 360 degrees, pivot-axis up to 115 degrees
• High shine chassis with LED illumination
• High-performance HF spindle up to 60.000 rpm
• Automatic tool-changing-system with 20 tool positions
• Dustcover for tool-changer
• Collet 6mm shaft
• Integrated precise tool measurement sensor
• Temperature-compensation for consistent high precision also at variations in environmental temperature
• Integrated suction hose including adapter
• Included CNC-control software CORiTEC Remote DENTAL 3.0
