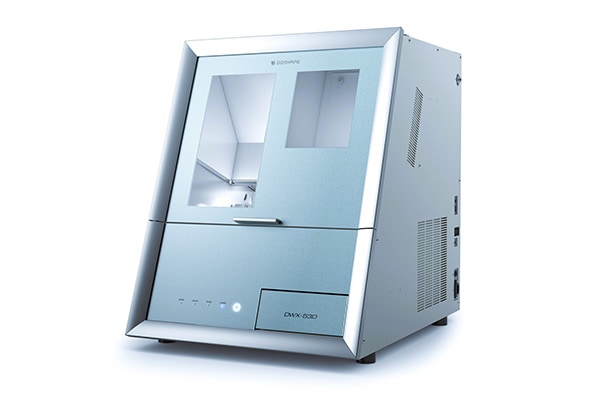

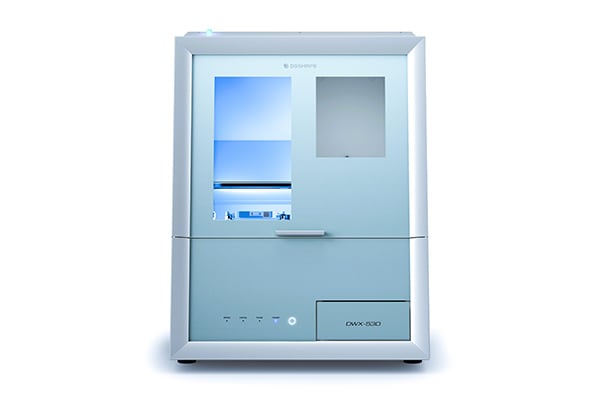

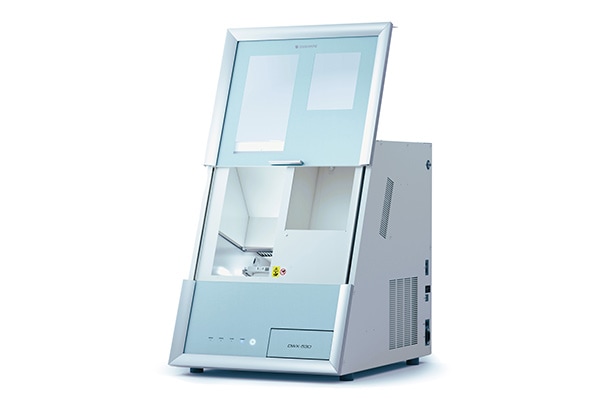

DGSHAPE DWX-53D Mill

Innovation Built from the Outside in
DGSHAPE DWX-53D Milling Machine – Your New Dry Milling Solution

Grip the Future

Experience the power of our upgraded, more robust spindle, delivering 1.5x the tool gripping power over the previous DWX-52D Plus model. Achieve more efficient and predictable milling of PMMA applications.

Speed Matters

Benefit from up to 20% faster PMMA and Zirconia milling speeds, ensuring you stay ahead of the competition.

Open Edge Adapter

Unlock advanced 90°+ milling capabilities with our Open Edge Adapter, allowing you to reproduce 100% of the case design. Perfect for milling large full-arch and highly-esthetic cases.

See What the Future Mills

Monitor your milling process in real-time with our built-in web camera, accessible anytime from anywhere.

5-Axis Milling

Experience superior milling results with our smooth and steady ball screw driven system. This advanced technology simultaneously rotates and tilts discs, allowing for deep undercuts and the milling of large arch restorations and other full-mouth prosthetics.

Intelligent Tool Control (ITC)

Simplify your operations with DGSHAPE’s proprietary VPanel software. The Intelligent Tool Control (ITC) function automatically swaps out tools that have reached their designated lifespan, eliminating time-consuming production errors and interruptions.

DGSHAPE’s Automatic Pressure Control system eliminates the need for manual air control adjustments by automatically changing air volume based on material data provided by the CAM software.

Key Features:

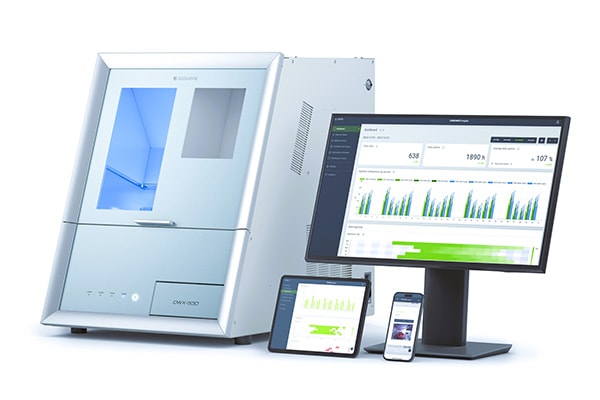

Fully-Integrated Webcam: Monitor your milling process from anywhere, anytime, on any device with our new fully-integrated webcam, accessible via DGSHAPE’s proprietary VPanel and DGSHAPE Cloud.

Open-Architecture Platform: Enjoy the flexibility to use your choice of restorative materials for dry milling, scanners, and CAD/CAM software. Customize a workflow that truly supports your business growth.

Seamless CAM Software Integration: Integrate effortlessly with DGSHAPE DWX Dry Milling Solutions using trusted connections with hyperDENT-Powered by DGSHAPE DGA Edition CAM software or MillBox CAM software.

Advanced Milling Strategies: Unlock new growth opportunities in your dental business with our advanced milling strategies. For more information on product bundle discounts that include CAM software, contact your dedicated DGSHAPE DGA sales representative.

DWX-53D Specifications:

COMPATIBLE MATERIALS PMMA, Zirconia, Wax, Composite Resin, PEEK, Gypsum, Glass-Fiber-Reinforced Resin, Pre-Sintered Chromium Cobalt
SPINDLE SPEED 30,000 RPM
ROTARY AXIS A = ±360° B = ±35°
AIR PRESSURE REQUIREMENTS 0.4 Mpa
EXTERNAL DIMENSIONS Width, Depth, Height = 21.85 in. x 28.54 in. x 27.75 in.
WEIGHT 231.49 lbs (105 kg)
MATERIAL ADAPTER COMPATIBILITY Standard Adapter: ZMA-53DC | Open-Edge Adapter: ZMA2-53DC
# OF MATERIAL ADAPTER PATTERNS 100
ADDITIONAL FEATURES Redesigned, more robust spindle for 1.5 x the gripping power over DWX-52D Plus, Built-in Integrated Webcam, Thermohydrometer Accelerometer Sensors
ACCESSORIES INCLUDED Built-In Integrated Webcam, Material Adapter Disc Rack (ZR-53DC), Standard Material Adapters (6-Pack, ZMA-53DC), Open-Edge Material Adapter (ZMA2-53DC), and 4.0 mm Roughing Tool (1-ZRB-200D).
ATTACHABLE BUR Shank 4 mm (Diameter), 40-55 mm (Length)
LOADABLE WORKPIECE Step Section: 98.5 mm Diameter, 10mm Height; Body Section: Max Height 60 mm
