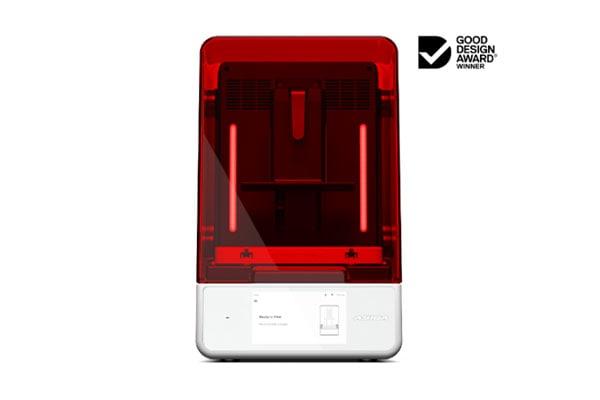

Asiga Ultra

Asiga Ultra

ASIGA

Predictable, reliable, smart.

The Asiga Ultra is Asiga's first desktop 4K 3D printer and offers a super-simple user interface, large build sizes, production consistency with their SPS™ technology and integrated LED power sensor, fast print speeds, open material freedom, and an award-winning user-centered design. It is engineered to deliver production continuity in any environment.

Active Layer Monitoring: Asiga's pioneering Smart Positioning System (SPS) achieves precise layer thickness control of each and every layer, ensuring optimal print accuracy and speed.

4K Imaging Resolution: The latest high resolution imaging chipset delivers extraordinary resolution over a large build envelope.

Auto-Calibrating UV LED: Combining the latest generation of high-power ultraviolet solid-state light sources with an integrated radiometer ensures years of consistent printing performance.

DLP Micromirror Technology: Achieve the highest standard of reliability with the broadest wavelength capability of any imaging technology.

Open Material Architecture: Experience the widest choice of materials on the market with unlimited and unrestricted access to many industry-leading materials for a variety of applications. Future-proof your business and stay up-to-date with the latest validated 3D print materials.

Features:

  • 4K DLP projector
  • SPS layer monitoring technology
  • UV 385nm high-power LED (optional 365nm and 405nm)
  • Integrated LED power sensor/radiometer
  • Touchless entry
  • Magnetic platform holder
  • Infrared material heater
  • Chamber heating
  • Transparent Mode™
  • Intuitive User Interface (UI)
Asiga Ultra
Product Specifications Ultra (50) Ultra (32)
Build Size 192 x 108 x 147mm 121 x 68 x 147mm
Pixel Size 50µm 32µm
Technology DLP DLP
Auto-calibrating UV LED 385nm
(365nm and 405nm available on request)
385nm
(365nm and 405nm available on request)
Software Asiga Composer software.
Lifetime updates included
Asiga Composer software.
Lifetime updates included
File Inputs STL, SLC, PLY, STM
(Asiga Stomp file format)
STL, SLC, PLY, STM
(Asiga Stomp file format)
Network Compatibility Wi-Fi, Wireless Direct, Ethernet Wi-Fi, Wireless Direct, Ethernet
Power Requirements 100-240VAC/500Watts 100-240VAC/500Watts
System Sizing 353 x 441 x 555mm | Weight 32.5kg
13.9 x 17.3 x 21.8 inches | Weight 71.5 lb
353 x 441 x 555mm | Weight 32.5kg
13.9 x 17.3 x 21.8 inches | Weight 71.5 lb
Packed Sizing 485 x 615 x 799mm | Weight 44 kg
19 x 24.21 x 31.45 inches | Weight 97 lb
485 x 615 x 799mm | Weight 44 kg
19 x 24.21 x 31.45 inches | Weight 97 lb
