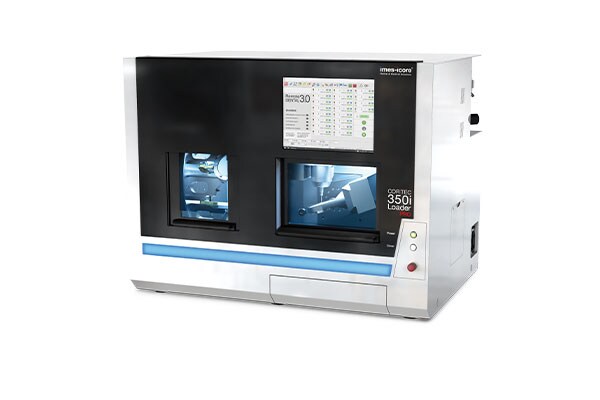

CORiTEC 350i Loader Pro

Professional solution for highest demands

The CORiTEC 350i Loader Pro comes with high resolution dynamic servo motors with absolute encoders that guarantee up to 20% faster milling with optimum precision. Its heavy polymer concrete base, cast as a monoblock, ensures the highest possible stability and vibration-free milling. The CORiTEC 350i Loader Pro has a fully automated blank magazine so that you can mill up to 12 blanks without dental lab technician intervention. Due to the precise repositioning of the zero point clamping system, different PreFab abutment holders can be used.

Features:

  • 5 axes processing (3+2 and simultaneous)
  • 12-fold automatic blank changing system (8 stainless steel blank holders included, expandable to 10 or 12 blank holders)
  • High dynamic AC servomotors with absolute encoder
  • Massive axis construction made of polymer concrete
  • Integrated zero-point-clamping-system
  • Integrated dry and wet processing
  • Integrated cooling liquid tank and circle
  • Suitable for processing of zirconium oxide, aluminum oxide, wax, PMMA, resins, glass-ceramics, CoCr and titanium
  • Milling-angles up to 30 degrees with the standard blank-holder
  • Rotation-axis 360 degrees, pivot-axis up to 115 degrees
  • High shine chassis with LED illumination
  • Integrated touchscreen and PC
  • Included management software "CNC-Manager"
  • High-performance high-frequency-spindle up to 60.000 rpm
  • Automatic tool-changing-system with 20 tool positions
  • Dustcover for tool-changer
  • Collet 6mm shaft
  • Integrated precise tool measurement sensor
  • Temperature-compensation for consistent high precision even with fluctuating ambient temperature
  • Integrated suction hose including adapter
  • Included CNC-control software CORiTEC Remote DENTAL 3.0
CORiTEC 350i Loader Pro

Specifications

Mechanics / electronics
Base structure Polymer concrete
Number of axes and operation type 5 axes,
simultaneous machining
Rotation angle A-axis 360°, B-axis 115°
Spindle High-frequency spindle
Maximum spindle speed / spindle power 60.000 rpm
1.0 KW
Spindle cooling Air cooled
Zero point clamping system Yes
Blankchanger Up to 12 blanks
Tools Milling and grinding tools with 6mm shaft
Tool changer 20-times
Tool length control ≤ 0.002 mm precision
Integrated PC Windows based
Display Integrated 15" touchscreen
Illumination 3 LED status colors /
LED illumination
Software Remote DENTAL 3.0
Compressed air supply* 6,5 - 9,0bar @ 80l/min
95 - 130PSI @ 2,9cf/min
Cooling liquid 4,8 l
1,27gal (US)
Connecting requirements
Weight 250 kg / 551.25 lbs
Width x depth x height 46.6 x 31.1 x 33.7 inch
1058 x 790 x 857 mm
Supply voltage / frequency 100-240 V
50/60 Hz
