CORiTEC 350i PRO+

CORiTEC 350i PRO+

imes-icore

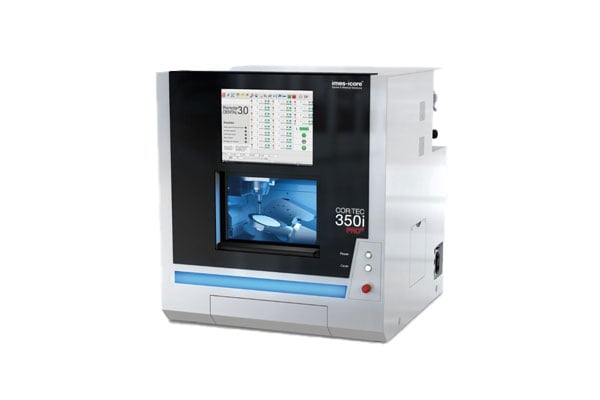

CORiTEC 350i PRO+

The plus in performance and precision

The CORiTEC 350i PRO+ comes with high-resolution dynamic servo motors and absolute measuring systems. To use this advanced technology and to be able to fully exploit its full potential, the CORiTEC 350i PRO+ is equipped with a water cooled, powerful 2.6 kW spindle with 3-fold hybrid ball bearing. Reaching stability and reducing vibrations is given by the massive stainless steel blank holders. The water cooling ensures a constant temperature of the milling spindle, so thermal expansion of the milling spindle is significantly minimized and enables even more precise milling results. Optional with fully automatic 12-position blank changer, the system enables versatile machining in 24-hour operation. The zero-point clamping system offers maximum flexibility for a wide range of applications.

Features:

  • High-resolution dynamic servo motors with absolute measuring system in all axes
  • Integrated wet and dry processing
  • Ionizer optional
  • Stainless steel blank holder
  • Integrated temperature compensation
  • 2,6 KW spindle - water cooled, powerful
  • 20-fold tool changer
  • 50% faster roughing
  • Optimized for the highest surface quality and precision
  • Suitable for 24-hour production operation
  • Integrated zero point clamping system
imes-icore CORiTEC 350i PRO+

Specifications

Mechanics / electronics
Base structure Polymer concrete
Number of axes and operation type 5 axes,
simultaneous machining
Rotation angle A-axis 360°, B-axis 115°
Spindle High-frequency spindle
Maximum spindle speed / spindle power 60.000 rpm
2.6 KW
Spindle cooling Water cooled
Zero point clamping system Yes
Blankchanger -
Tools Milling and grinding tools with 6mm shaft
Tool changer 20-times
Tool length control ≤ 0.002 mm precision
Integrated PC Windows based
Display Integrated 15" touchscreen
Illumination 3 LED status colors /
LED illumination
Software Remote DENTAL 3.0
Compressed air supply* 6.5 - 9.0bar @ 80l/min
95 - 130PSI @ 2,9cf/min
Cooling liquid 4,8 l
1,27gal (US)
Connecting requirements
Weight 210 kg / 463.05 lbs
Width x depth x height 29.8 x 31.1 x 33.7 inch
758 x 790 x 857 mm
Supply voltage / frequency 100-240 V
50/60 Hz
