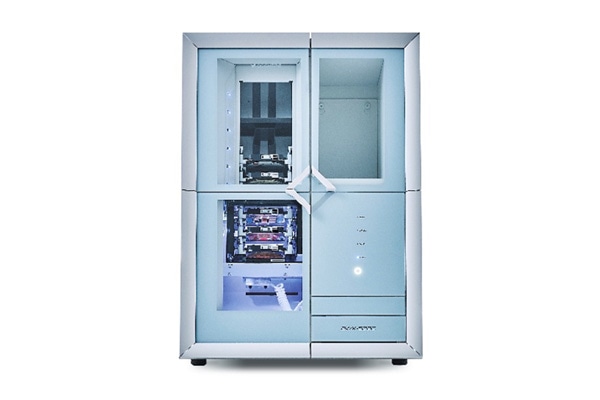

DGSHAPE DWX-53DC

DGSHAPE DWX-53DC

DGSHAPE - A DGSHAPE Company
DGSHAPE DWX-53DC

DGSHAPE DWX-53DC

Make 24-hour production as simple as 1,2,3 with the New DGSHAPE DWX-53DC 5-axis dry milling machine. Automatically mill a full range of quality restorations with unattended confidence!

  • Redesigned robust spindle with 3X gripping power for PMMA applications
  • 4mm roughing tool for 30% faster PMMA milling times
  • Enhanced disc changer with 50% faster exchange
  • Fully-integrated web cam for real-time monitoring anywhere and from any device
  • Automated eco-system with extraction unit included
  • 2-year warranty provided by DGSHAPE DGA’s unsurpassed service and support team

Intelligent Tool Control (ITC)

  • VPanel software
  • Automatically changes tools when at full design lifespan
  • Eliminates errors and/or interruptions

5-Axis Milling

  • Superior milling results
  • Simultaneous rotating and tilting discs for undercuts
  • Large arch restorations and full-mouth prosthetics

The Automatic Pressure Control is based on material data via CAM software for air volume control.

DWX-53DC Specs:

COMPATIBLE MATERIALS PMMA, Zirconia, Wax, Composite Resin, PEEK, Gypsum, Glass-Fiber-Reinforced Resin, Pre-Sintered Chromium Cobalt
SPINDLE SPEED 30,000 RPM
ROTARY AXIS A = ±360° B = ±35°
AIR PRESSURE REQUIREMENTS 0.4 Mpa
EXTERNAL DIMENSIONS Width, Depth, Height = 23.62 in. x 29.25 in. x 32.75 in.
WEIGHT 264.55 lbs.(120 kg)
DISC CHANGING TIME 1 minute, 7 seconds
MATERIAL ADAPTER COMPATIBILITY Standard Adapter: ZMA-53DC | Open-Edge Adapter: ZMA2-53DC
# OF MATERIAL ADAPTER PATTERNS 100
ADDITIONAL FEATURES Redesigned, more robust spindle for 3x the gripping power with PMMA applications, Built-In Integrated Webcam, Automatic Extractor Filter Cleaning, Thermohydrometer Accelerometer Sensors
ACCESSORIES INCLUDED Dedicated Extraction Unit and Connection Cable, Built-In Integrated Webcam, Material Adapter Disc Rack (ZR-53DC), Standard Material Adapters (6-Pack, ZMA-53DC), Open-Edge Material Adapter (ZMA2-53DC), 4.0 mm Roughing Tool (ZRB-200D), Diamond-Like Coated (DLC) Milling Tool Set (ZPB-100D, ZPD-50D, & ZPB-30D)
ATTACHABLE BUR Shank 4 mm (Diameter), 40-55 mm (Length)
LOADABLE WORKPIECE Step Section: 98.5 mm Diameter, 10mm Height; Body Section: Max Height 60 mm
